Structured Cabling
Organized rack cabling — installation example.
Structured Cabling & Data Networking
Structured Cabling & Data Networking
Permanent cabling and rack work that cameras, phones and WiFi can grow on without rewiring the building.
Network plant
The network plant behind every connected system.
Structured cabling is the backbone for CCTV, access, intercom and wireless. We design Cat6 / Cat6A (and Cat7 where the brief calls for it), fibre where distance or backbone needs it, data points, patch panels and racks — labelled, tested and ready for the next device.
Infrastructure scope
Cabling and network work we typically deliver
- 01
Structured data cabling for desks, cameras, phones and access points
- 02
Cat6, Cat6A and Cat7 runs where the site brief and distance require them
- 03
Data-point installation and additional points on existing plant
- 04
Cabling diagnostics and repairs when ports fail or links stay unreliable
- 05
Fibre-optic cabling for backbones and longer building links
- 06
Network installation and troubleshooting support for switches and plant
- 07
Patch panels, server and telecommunications racks, and cable management
- 08
Coordination with CCTV, access, intercom and WiFi so one riser serves multiple systems
Infrastructure benefits
Why structured cabling beats ad-hoc wiring
- 01
Cat6 / Cat6A / Cat7 & fibre
Category and fibre choices matched to distance, PoE load and growth — not a one-size drop for every wall.
- 02
Data points & diagnostics
New points installed cleanly, and existing plant tested when links drop so faults are fixed instead of patched around.
- 03
Racks, patch panels & cable management
Organised terminations with labelling and service access so every port has a documented destination.
- 04
Network install & support
Switch capacity, PoE and routes considered with the security and WiFi brief — including help when the plant misbehaves later.
Where cabling matters
Sites that benefit from proper data infrastructure
- New offices and fit-outs
- Homes and workplaces adding data points
- Existing buildings needing tidy rewiring or fault repair
- Sites preparing for CCTV, NBN or WiFi expansion
- Multi-floor commercial premises and shared risers
Equipment & system considerations
Cable, switches and rack hardware are specified to match the site brief. Exact brands and models are confirmed in your quote.
In the rack
Labelled plant you can expand without starting over.

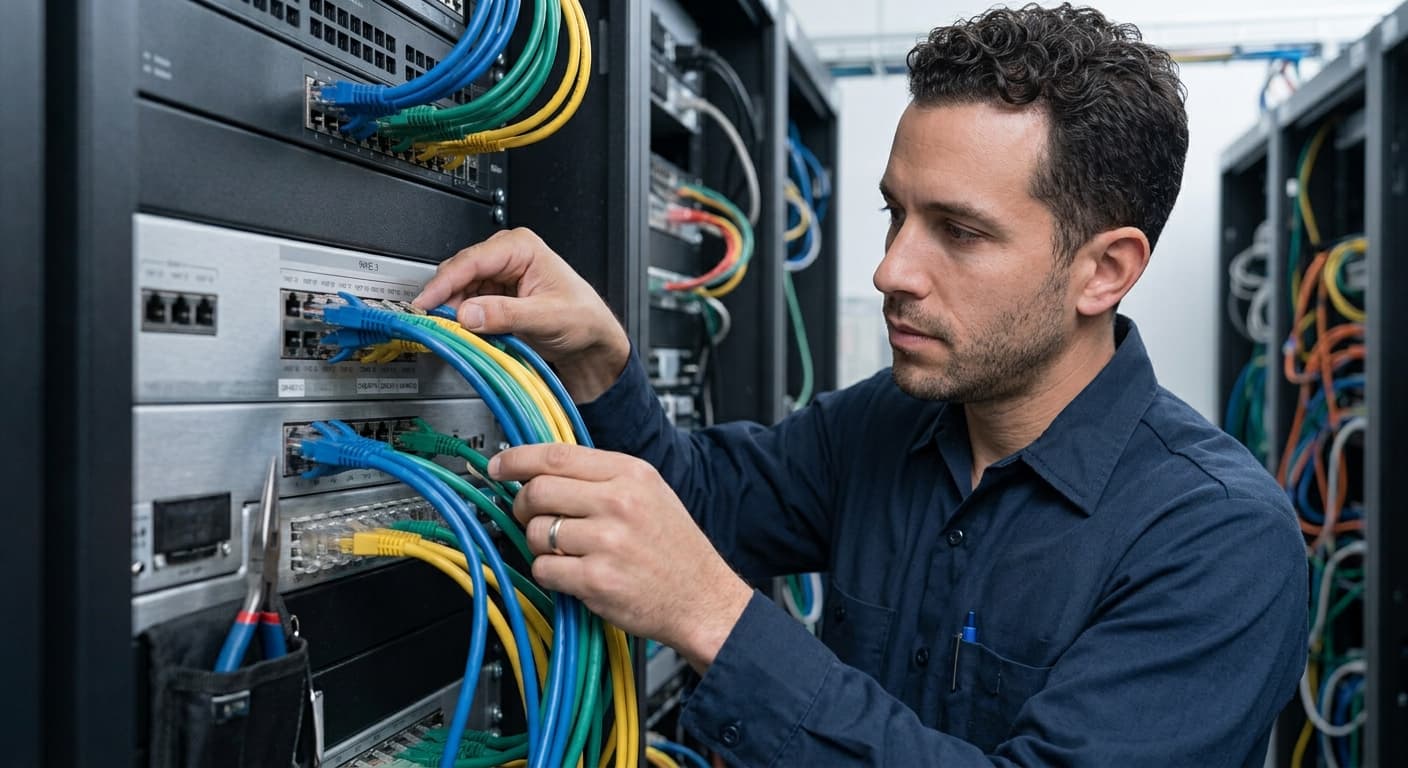

Reference cabling and rack imagery until A2Z project photography is supplied.
How cabling projects run
From survey to tested ports
- 01
Pathway survey
We map risers, ceilings and cupboards, then agree drop density and rack location before pulling cable.
- 02
Design & materials
You get a clear schedule of runs, panels and rack layout with a fixed-scope quote.
- 03
Pull, terminate & test
Cable is pulled, terminated to patch panels and tested so every port has a known destination.
- 04
Documentation handover
Labelling and a simple port map leave the site ready for cameras, phones, WiFi or future expansion.
Cabling installation examples
Data infrastructure applications imagery

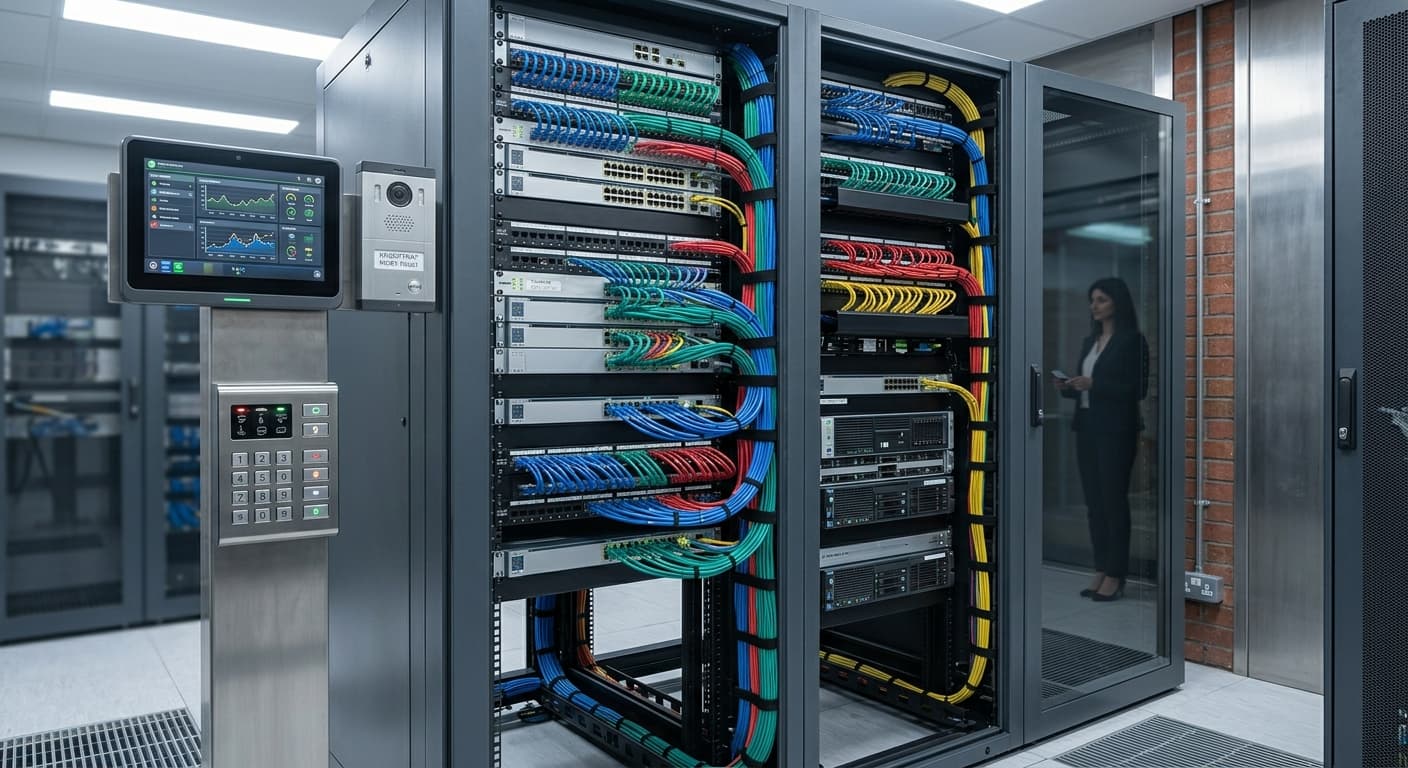

Reference examples until A2Z project photography is supplied.
- Installation example
Installation exampleIndustrial · Structured cabling
Structured Cabling

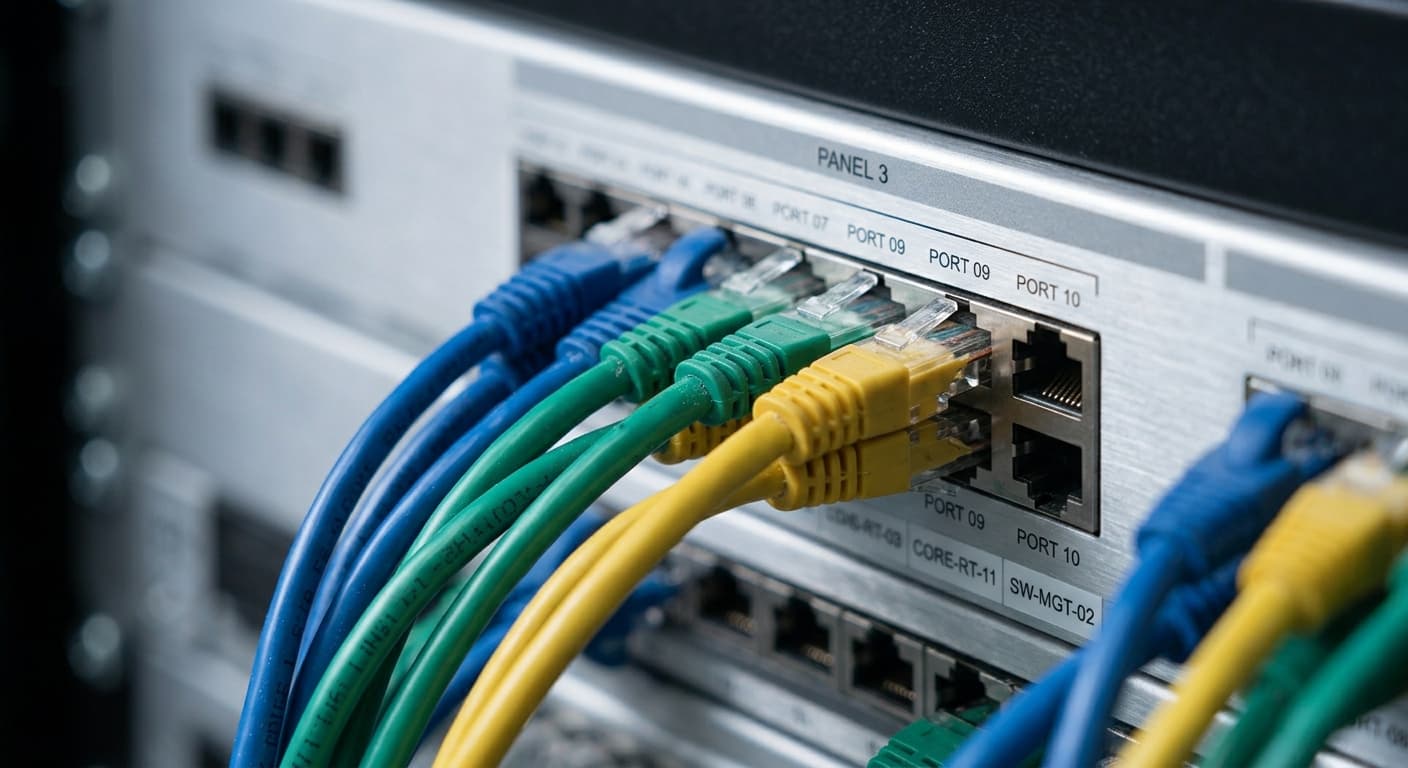

Network rack and structured cabling — service application.
Cabling questions
Common questions about structured cabling
It is a planned network of fixed data cables, patch panels and racks that connects devices across a building in an organised, labelled way.
Request a structured cabling quote
Tell us about floors, cupboard space and what will hang off the network — we'll design plant that can grow with the site.
